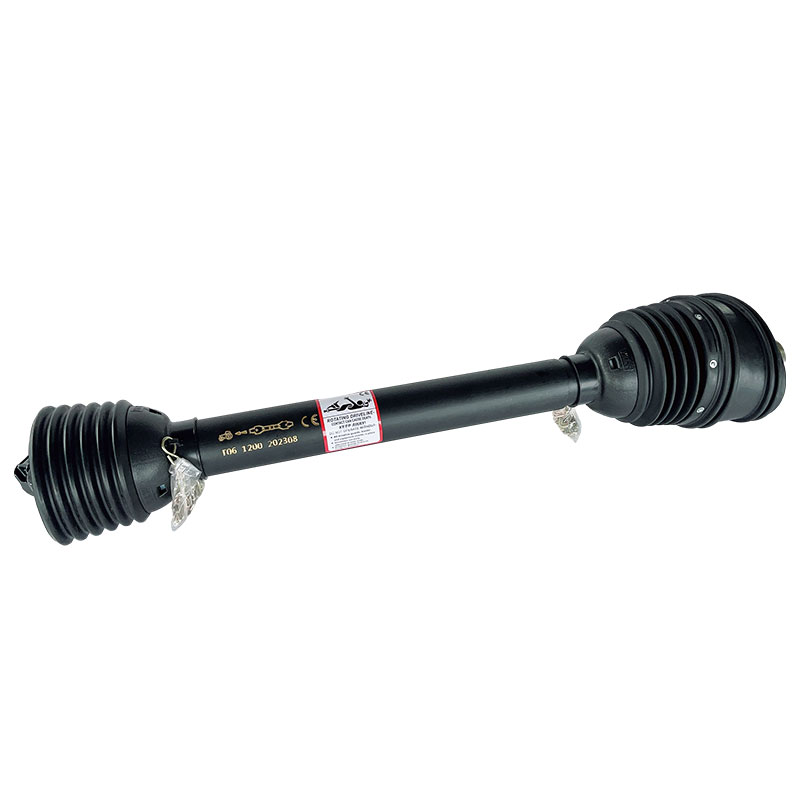

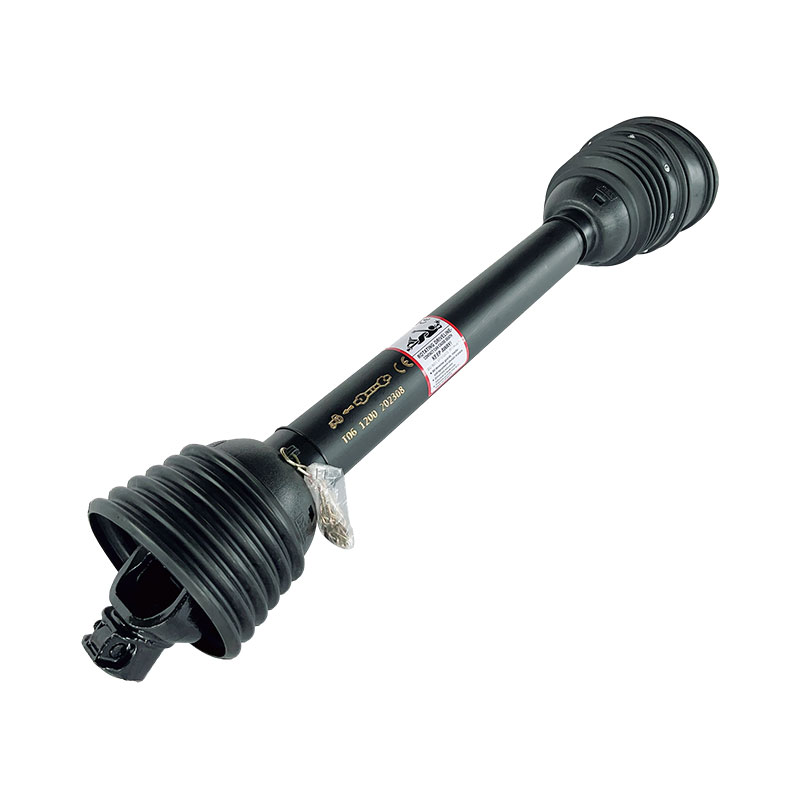

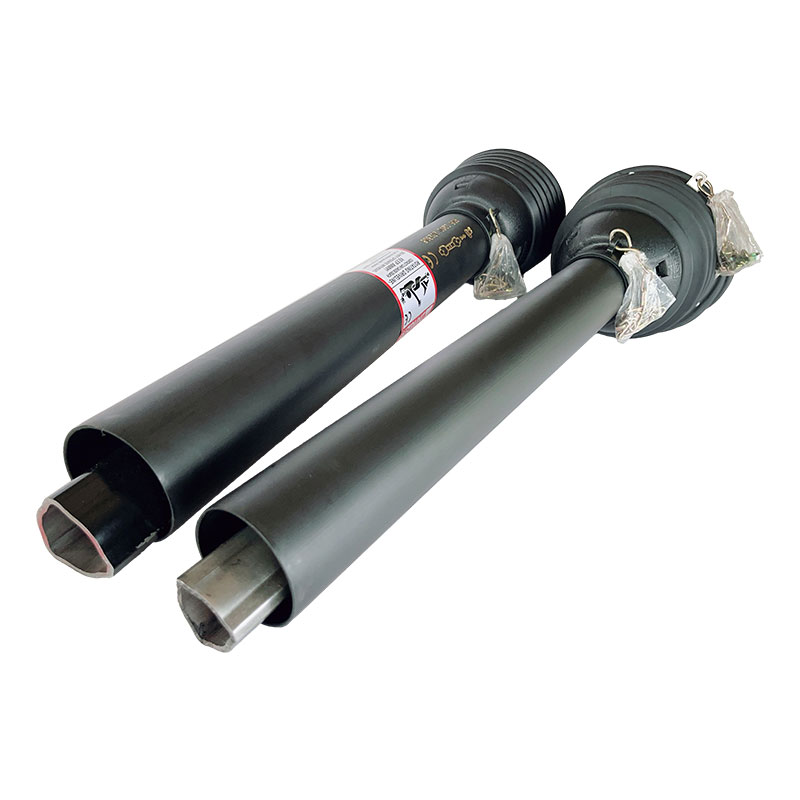

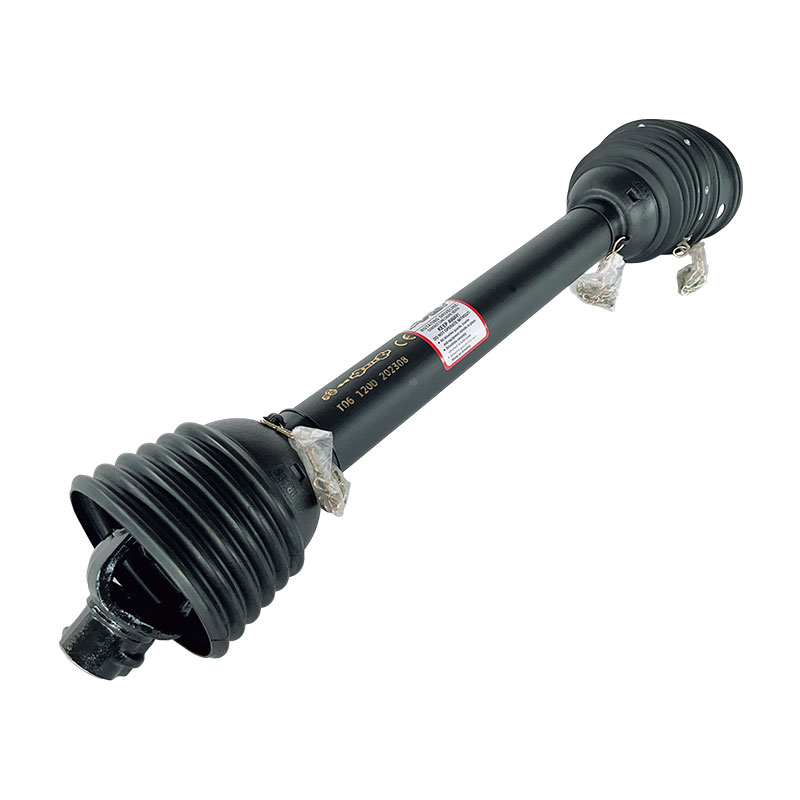

PTO Drive Shafts for Tractors

Minghua gear PTO drive shafts for Tractor are made to be more economical, more productive, and less prone to downtime. They can increase your agricultural productivity and are ideal for usage in challenging farming environments. To find out more about Minghua Manufactured agriculture PTO drive shafts and how they may help your farming operation, get in touch with us right now.

Send Inquiry

Product Description

Minghua Gear always adds value for its clients. Different types of agriculture drive shafts are available from us.

1) PTO shafts equipped with a triangle tube.

2) PTO shafts equipped with lemon tube.

3) Star tube Series S.

4) Length: between 410 and 2,500 mm.

5) Create nonstandard types in accordance with client specifications

6) Packaging: iron pallet packaging or in accordance with client specifications.

PTO Drive Shafts for Tractor Technical Specifications

Universal jointmaterial	20 CrMnTi
Max operation angle	15°
Implement side	spline 1 3/8"-6, Slide collar
Dynamic Capacity	12 KW/16 HP 210 N.m at 540 rpm
Tractor side	spline 1 3/8"-6, Slide collar

PTO Drive Shafts for Tractor features and applications

Sturdy: This PTO shaft has a CE certification and is a well-forged size 1 driveline shaft. The 20CrMnTi Universal Joint, Q345 telescopic tubes, and engineering plastic make up the PTO shaft.

Length adjustable: This drive shaft's compressed length is 27"/686 mm. During regular operation, the maximum length is 37"/942 mm. 15° is the maximum operating angle.

Implement side: spline 1 3/8"-6, Slide collar; Tractor side: spline 1 3/8"-6, Drag collar.

Dynamic Capacity: At 540 rpm, the tractor PTO shaft produces 12 kW, 16 HP, and 210 Nm of torque. It has 18 kW, 25 HP, and 172 Nm of torque @ 1000 rpm.

Wide application: This tractor PTO shaft is widely used on mowers, rotary tillers, rotary cutters,tractors, etc.
