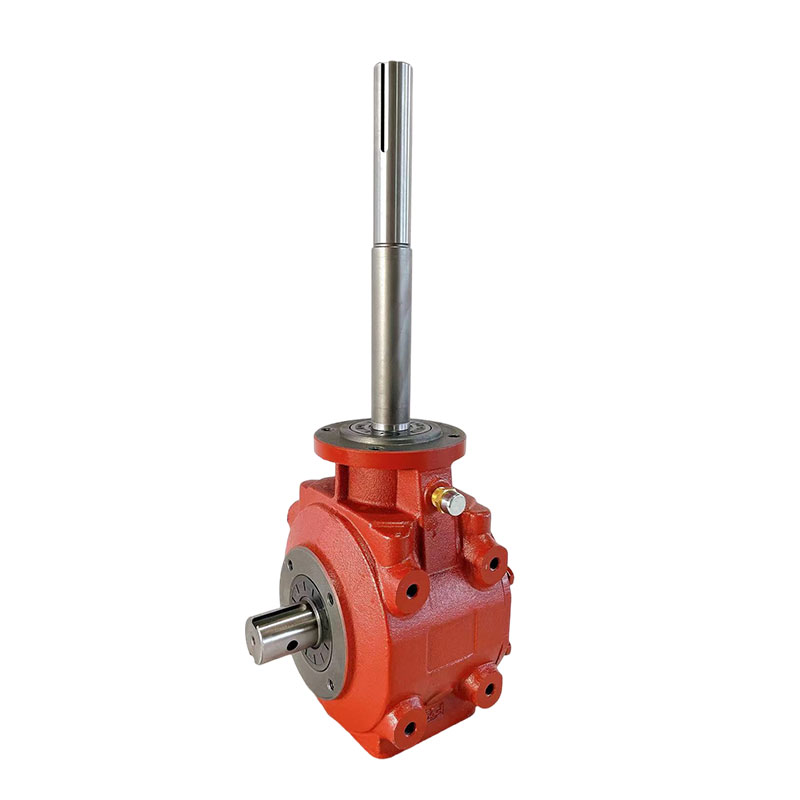

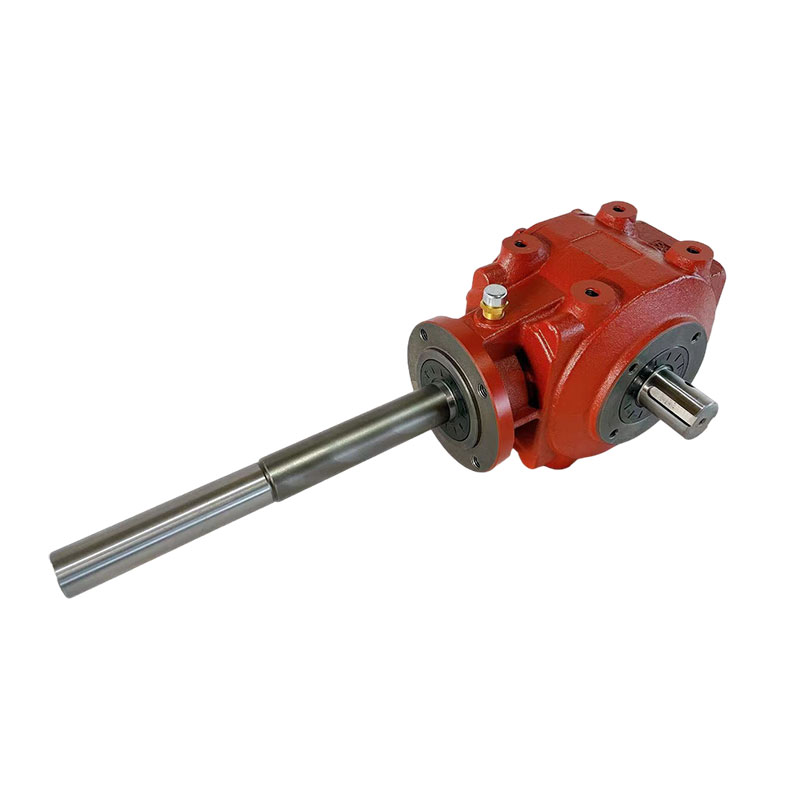

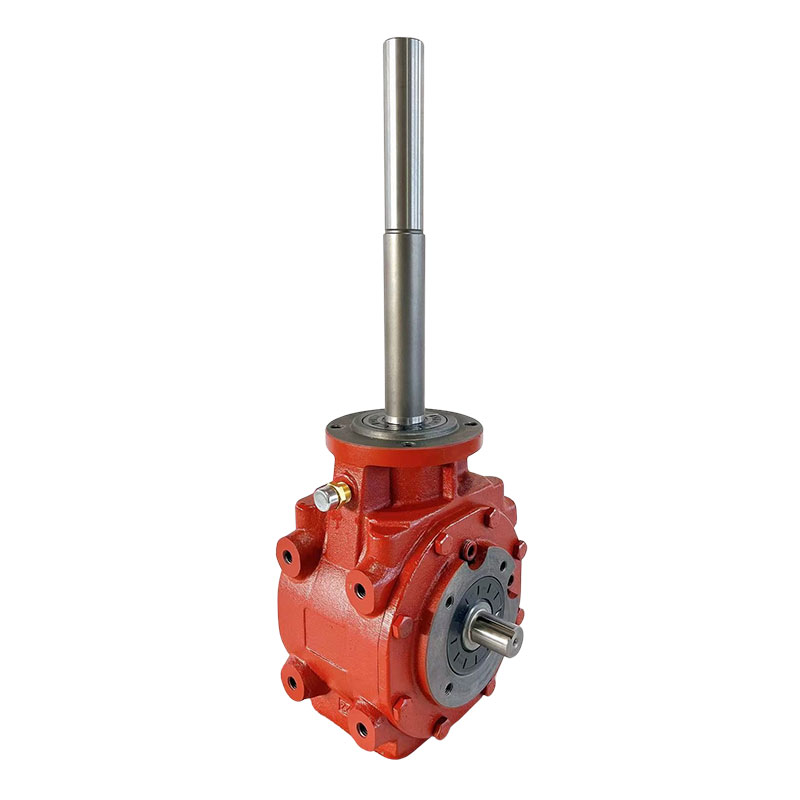

An angular gearbox designed specifically for rear-side flail mowers serves as a critical component in agricultural machinery, facilitating efficient power transmission and effective cutting performance. The Angular Gearbox for Rear-side Flail Mowers are engineered with precision and durability to withstand the demanding conditions of agricultural operations while providing versatility and ease of use.
Gear ratio |
5.22:1 |
Input speed |
1800rpm |
Gearbox housing |
Ductile iron |
Input shaft |
Plain shaft with keyway |
Output shaft |
Plain axis with keyway and bore |
Input power |
7.5KW |
Weight |
23.1Kg |
The feature of right angle gearboxes, including space-saving design, directional flexibility, efficiency, torque transmission capability, versatility, reduced maintenance requirements, and cost-effectiveness, make them an attractive choice for a wide range of applications across various industries.
Right angle gearboxes, also known as angular gearboxes or bevel gearboxes, find application across various industries and machinery where the transmission of power at a right angle (90 degrees) is required.
1. **Durability**: Constructed from high-quality materials, these gearboxes are built to withstand the rigors of continuous operation in demanding agricultural environments.
2. **Precision Engineering**: Minghua Gear Manufacture employs advanced manufacturing techniques to ensure precise gear tooth profiles and accurate assembly, minimizing friction and maximizing efficiency.
3. **Optimized Gear Ratio**: The gear ratio is carefully designed to provide optimal torque and speed for efficient cutting performance, tailored to the specific requirements of rear-side flail mowers.
4. **Sealed Design**: To prevent contamination from dust, debris, and moisture, Minghua's Angular Gearboxes feature a sealed design, enhancing longevity and reducing maintenance requirements.
5. **Easy Installation and Maintenance**: These gearboxes are designed for straightforward installation and minimal maintenance, allowing farmers and equipment operators to focus on their tasks with minimal downtime.
6. **Compatibility**: Minghua Gear Manufacture ensures that their Angular Gearboxes are compatible with a wide range of rear-side flail mowers, offering versatility to agricultural equipment manufacturers and users.
7. **Performance and Reliability**: With a focus on performance and reliability, Minghua's gearboxes undergo rigorous testing to ensure they meet or exceed industry standards, providing peace of mind to users.
8. Product Video.
